Sony PXW-Z750 4K Broadcast Kit

Expand
Gear Arrives On
Ships Back On
Total
? ? ?
?
? ? ?
?
Days
4

4 Day Rental Price:

$1296.71

You Save

$244.29

Shipping
Included*

*up to 2nd day air - overnight available

We built the Sony PXW-Z750 4K Broadcast Kit for videographers who need a 4K ENG / EFP camera solution that can easily adapt from the field to the studio. Centered around Sony’s PXW-Z750 camera, this V-mount powered, B4 compatible, broadcast-style kit solution includes everything you need to start shooting while still allowing you the freedom to choose your own lenses. Click on any of the package items below for more information.

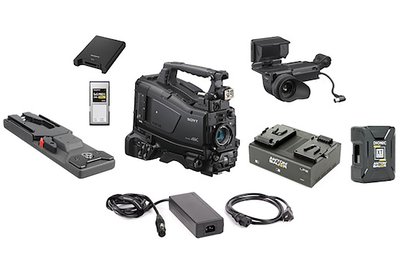

The Sony PXW-Z750 4K Broadcast Kit includes:

Q & A

Does this kit include the Sony Wireless LAN module? Can I attach the Z750 to a standard tripod head?
  • While the camera is designed to be shoulder mounted, we include a VCT adapter plate with this kit, allowing you to easily move from a tripod to the shoulder.


Brand

Sony

Inputs/Outputs

Audio In

  • 5-Pin XLR
  • 3-Pin XLR
Audio Out
  • XLR-type 5-pin
  • Headphone Out: Stereo mini-jack
Video Outputs
  • (2) 12G/6G/3G/1.5G SDI BNC
  • HDMI Type-A
Additional Inputs/Outputs
  • Genlock: BNC, 1.0 Vp-p, 75 Ω, unbalanced
  • Timecode In: BNC, 0.5 V to 18 Vp-p, 10 kΩ
  • Timecode Out: BNC, 1.0 Vp-p, 50 Ω
  • Sync Out:BNC, SD analog composite/HD-Y selectable
  • SDI In: 1.5G
  • Lens: 12-pin, lens power source (11 V to 17 V DC, 1.0 A maximum rated current)
  • Remote: 8-pin
  • Ethernet: RJ-45



Item Type

Broadcasting Cameras and Package

Package Type

Sony Video

Physical

Dimensions (WxHxD)

  • ~ 5.91 × 10.59 × 13.07”
Weight
  • ~ 8.3 lbs.
Accessory Mounts
  • VCT wedge
  • Viewfinder shoe assembly



Recording

Media

  • (2x) SxS slots
  • SDHX/SDXC (proxy)
Main Format
  • XAVC Intra (XAVC-I QFHD 300): 3840 × 2160 59.94p, 50p, 29.97p, 25p, 23.98p
  • XAVC Intra (XAVC-I HD 100): 1920 × 1080 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p
  • XAVC Long (XAVC-L422 QFHD 200): 3840 × 2160 59.94p, 50p
  • XAVC Long (XAVC-L420 QFHD 150): 3840 × 2160 59.94p, 50p
  • XAVC Long (XAVC-L422 HD 50): 1920 × 1080 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p
  • MPEG HD422: 1920 × 1080 59.94i, 50i, 29.97p, 25p, 23.98p
    1280 × 720 59.94p, 50p, 29.97p, 25p, 23.98p
  • MPEG HD420: 1920 × 1080 59.94i, 50i, 29.97p, 25p, 23.98p
    1440 × 1080: 59.94i, 50i
    1280 × 720: 59.94p, 50p
Proxy Format
  • AVC/H.264 Main Profile 4:2:0 Long GOPVBR
  • 1920 × 1080, 6 MBps, 9 MBps (Target Rate)
  • 1280 × 720, 6 MBps , 9 MBps (Target Rate)
  • 640 × 360, 3 MBps (Target Rate)
  • 480 × 270, 1 MBps, 500 kBps (Target Rate)
