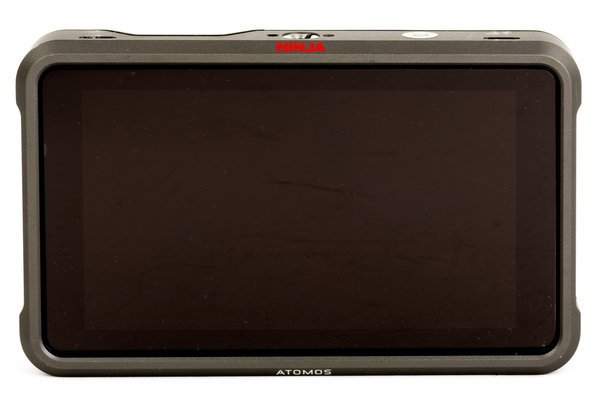

×Atomos Ninja V 5" 4K HDMI Recording Monitor
4 Day Rental Price:
$65.00
The Atomos Ninja V is a compact, 5-inch, HDMI video recorder capable of capturing DCI 4K up to 60 fps to SSD media. Key features include:
-
10-bit, 1000 cd/m², 1920 × 1080, touchscreen display
-
10-bit, 4:2:2 ProRes RAW & DNxHR recording
-
Powered by AC adapter or separately available Sony L-series battery
-
Records to SSD media
DCI 4K/60p ProRes & DNxHR Recording. The Atomos Ninja V is a very capable recorder that borrows a lot of its features from the larger 7-inch Atomos Ninja Inferno, but offers them in a more compact form factor. On the Ninja V, DCI as well as UHD 4K can be recorded at frame rates up to 60p, and footage can be saved in RAW, ProRes or DNxHR formats. Recorded files will have a maximum of 10-bit 4:2:2 chroma subsampling.
5-Inch, 1000 cd/m², IPS LCD Screen. This recorder has a bright, daylight-viewable LCD panel with touchscreen controls. The 1920×1080, 427 ppi resolution provides super crisp images on the 5" display, and the 10-bit bit depth renders rich, accurate colors. A sun hood is provided to obscure direct sunlight.
AtomHDR Display. The traditional Rec.709 video standard is based on an 8-bit color depth and about 6.5 stops of dynamic range. The Ninja V’s monitor features a wide 10-stop dynamic range, making it capable of natively displaying log footage without it looking washed out. Built-in presets for Sony, Canon, Panasonic, ARRI, RED, and JVC cameras convert the typically flat-looking log-based images into vibrant HDR pictures. Please note that the preset looks will only actually affect viewing; the recorded footage remains totally unaltered.
HDMI-Only Interface. The Ninja V offers full-size HDMI input and output ports. If you like the Ninja V form factor but need SDI I/Os, we recommend renting the Atomos AtomX SDI Module featuring two configurable 12G-SDI ports, in addition to the rental of this recorder. This version of the Ninja V does not support any RAW signals via the SDI adapter and there is no cross conversion of HDMI / SDI signals.
Media & Power. This recorder takes the same Master Caddy II SSD enclosure that has been used for the last few generations of Atomos products, and this rental includes one to install your own SSDs into. This rental includes an AC adapter for power, and the monitor can be powered by Sony L-series batteries (not included) as well. SSD media and power kits are separately rentable.
Q & A
Does this rental include mounting hardware?
-
No. Since everyone’s mounting needs differ, we decided to make mounting a la carte. We have a wide variety of support gear to choose from, including monitor arms.
-
This monitor doesn’t have the H.265 codec license installed, but the Atomos Ninja V+ 5.2-inch 8K HDMI Recorder w/ Accessory Kit does.
-
Yes, the Ninja V supports ProRes RAW over HDMI.
-
This rental doesn’t include any HDMI or SDI cables. You can find our cables here. If you’re unsure about which cord is right for your application, please contact us for verification.
-
This rental doesn’t include an SSD, but they’re available as separate rental items. You can see some options under Recommended on the left-hand side of this page.
Resources
This version of the Atomos Ninja V 5" 4K HDMI Recording Monitor does NOT come with a battery, only an AC Adapter. If you need L-series batteries, please click here. Or if you'd like a more turnkey set up please see the Atomos Ninja V 5" 4K HDMI Recorder w/Accessory Kit.
| Brand |
Atomos |
| Inputs/Outputs |
Audio Inputs
|
| Item Type |
Recorder and Recorders |
| Monitoring |
LCD Panel
|
| Physical |
Dimensions (W x H x D)
|
| Power Supply |
AC Adapter
|
| Recording |
Formats
|
Atomos Ninja V 5" 4K HDMI Recording Monitor
AC Adapter - 12V Simsukian SK05T w/ Locking Connector
Case - Tetrafab Accessory EVA Small - Black
Video Recorder - Atomos Ninja V Battery Eliminator
Video Recorder - Atomos SSD Master Caddy III
