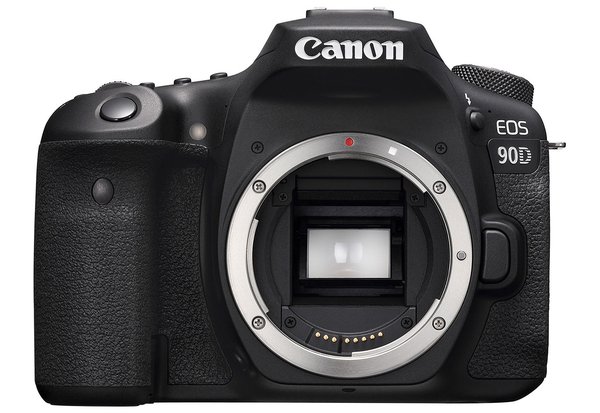

The Canon 90D is a versatile mid-range DSLR and an update to the popular Canon 80D. Key features include:
32.5MP APS-C CMOS sensor
Native ISO sensitivity of 100-25,600
UHD 4K30p and Full HD 120p video capture
Dual-Pixel CMOS and 45-point all cross-type autofocus systems
What’s Changed. The Canon 90D has a few key differences from its predecessor. You get a newly designed 32.5MP sensor with a broader native ISO range, a 45-point all cross-type autofocus system when shooting through the viewfinder, a Dual Pixel autofocus system when using live view, faster continuous shooting, and longer battery life.
High-Res APS-C Sensor. The 32.5MP APS-C CMOS sensor produces high-resolution still images, and high-quality UHD 4K30p and Full HD 120p video. The DIGIC 8 Image Processor also offers improved low-light performance with a native ISO sensitivity of 100-25,600. The updated processor also enables the camera to shoot 10 fps in continuous shooting mode and 7 fps in live view.
Dual Pixel CMOS Autofocus. Canon’s Dual Pixel CMOS autofocus system provides extremely fast and accurate live view autofocus performance. It features 5,481 selectable autofocus points and supports continuous focusing in live view still mode. On the video front, there is also a Movie Servo AF mode, which offers smooth focusing when changing distance within a shot—essentially built-in rack focusing for video shooting. You also have the option to set tracking sensitivity, AF speed, and face tracking priority, much like what you had in the 80D.
45-Point All Cross-Type Autofocus System. Still shooters will find the aid of a wide-area 45-point cross-type phase detection autofocus system. That means that you get really accurate, really fast autofocus even in low-light situations. Four modes allow you to hone in on specific areas, including single-point AF, Zone AF (nine zones to choose from), Large Zone AF (three even larger zones to choose from) and 45-point AF auto selection.
3.0-Inch Articulating Touchscreen LCD. The large 3.0-inch 1.04m-dot vari-angle touchscreen LCD monitor is great for shooting and image review.
Other Advanced Features. The 90D offers built-in Wi-Fi connectivity, allowing you to both control the camera and review images from a compatible iOS/Android device with Canon’s Camera Connect app. You get 4K time-lapse capability, 4K frame grabs for effectively shooting 8MP stills at up to 30 fps, and revised 220000-pixel AE metering sensor, and in-camera RAW editing for those who are interested. The camera records its RAW/JPEG images and video files to SDHC/XC memory cards, and uses the Canon LP-E6N battery with a rated output of 1300 shots per charge.
Aspect Ratio |
1:1, 3:2, 4:3, 16:9 |
Audio File Formats |
AAC |
Audio Recording |
Built-In Microphone (Stereo) |
Autofocus Points |
Phase Detection: 45 (45 Cross-Type) |
Autofocus Sensitivity |
-3 to +18 EV |
Battery |
1x LP-E6N Rechargeable Lithium-Ion, 7.2 VDC, 1865 mAh (Approx. 1300 Shots) |
Bit Depth |
14-Bit |
Brand |
Canon |
Built-in Flash |
Yes |
Camera Type |
DSLR |
Connectivity |
3.5mm Headphone, 3.5mm Microphone, HDMI C (Mini), Micro-B (USB 2.0) |
Continuous Shooting |
Up to 10 fps at 32.5 MP for up to 25 Exposures (RAW) |
Crop Factor |
1.6x |
Dedicated Flash System |
eTTL |
Depth |
3.0" |
Diopter Adjustment |
-3 to +1 |
Exposure Compensation |
-5 to +5 EV (1/3, 1/2 EV Steps) |
Exposure Modes |
Aperture Priority, Manual, Program, Shutter Priority |
External Flash Connection |
Hot Shoe |
External Video-Recording Modes |
4:2:2 8-Bit |
Flash Compensation |
-3 to +3 EV (1/3, 1/2 EV Steps) |
Flash Modes |
Auto, Manual |
Focus Type |
Auto and Manual Focus |
Focusing System |
Continuous-Servo AF, Manual Focus, Single-Servo AF |
Guide No. |
39.37’ / 12 m at ISO 100 |
Height |
4.1" |
ISO Range |
Auto, 100 to 25600 |
Image File Formats |
JPEG, RAW |
Image Stabilization |
Digital (Video Only) |
Interval Recording |
Yes |
Item Type |
Camera |
Maximum Resolution |
6960 × 4640 |
Maximum Sync Speed |
1/250 Second |
Memory Card Slot |
1x SD/SDHC/SDXC |
Metering Modes |
Center-Weighted Average, Evaluative, Partial, Spot |
Metering Range |
1 to 20 EV |
Mirror Lock-Up |
Yes |
Monitor Resolution |
1,040,000 Dot |
Monitor Size |
3" |
Monitor Type |
Articulating Touchscreen LCD |
Mount |
Canon EF |
Pixels |
Actual: 34.4 Megapixel |
Recording Time |
Up to 29 Minutes, 59 Seconds |
Self Timer |
2/10-Second Delay |
Sensor Dimensions |
22.3 × 14.8mm |
Sensor Size |
Crop Frame |
Sensor Type |
CMOS |
Shutter Speed |
Mechanical Shutter |
Video Encoding |
NTSC |
Video Recording Modes |
MP4/H.264 |
Viewfinder Coverage |
100% |
Viewfinder Eye Point |
22mm |
Viewfinder Magnification |
Approx. 0.95x |
Viewfinder Type |
Optical (Pentaprism) |
Weight |
1.54 lbs. |
White Balance |
Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten |
Width |
5.5" |
Wireless |
Bluetooth, Wi-Fi |
