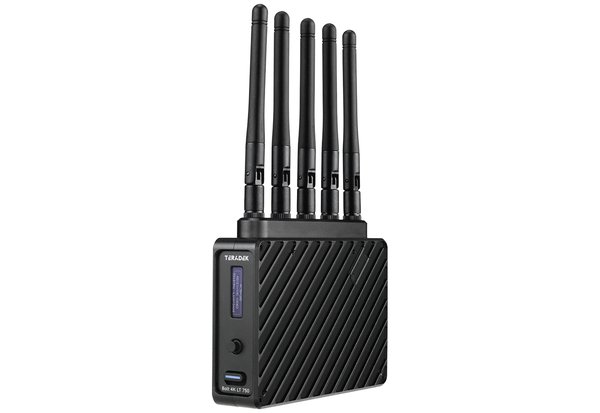

Teradek Bolt 4K LT HDMI Receiver (V-Mount)

Gear Arrives On
Ships Back On
Total
? ? ?
?
? ? ?
?
Days
4

4 Day Rental Price:

$98.00

Shipping
Included*

*up to 2nd day air - overnight available

The Teradek Bolt 4K LT HDMI Receiver (V-Mount) is an add-on HDMI-only zero-delay wireless receiver for the Teradek Bolt 4K LT HDMI V-Mount Kit. Key features include:

  • Receive wireless UHD 4K30p video from up to 750 feet

  • HDMI monitoring; Rec. 2020 HDR 10-bit 4:4:2 color gamut

  • V-Mount pass-thru plates and AC adapter included

  • V-Mount batteries not included

Receiver Only. This kit includes one Teradek Bolt 4K LT HDMI Receiver. You’d want this add-on when sending your video to more than one destination. Teradek Bolt 4K LT transmitters can simulcast to up to six Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series receivers over the 5 GHz signal spectrum.

Up to 4K30p Reception. The Teradek Bolt 4K LT HDMI Receiver lets you wirelessly receive up to 4K30p lossless video from a compatible transmitter from up to 750 feet along line of sight. It can also receive footage via HDMI with Rec. 2020 HDR 10-bit 4:4:2 color gamut, so you can monitor every shot in pristine detail.

HDMI Only. This receiver can only output HDMI footage—it doesn’t have an SDI port. An HDMI loop-through connector allows passthrough of transmitted video to monitors and secondary wireless devices.

AC Power. This receiver includes one 18W 6-foot AC adapter for powering the receiver, and it also includes male and female V-Mount plates. Please note that this rental does not include batteries, but they’re available here as separate rental items. If you prefer Gold Mount batteries, we also rent the Teradek Bolt 4K LT HDMI Gold Mount Receiver.

Additional Features. Built-in AES-256 encryption and RSA 1024 key pairing keep your footage fully protected. The Teradek Bolt app for iOS and Android connects via Bluetooth and gives you a spectrum analyzer, channel-selection tools, and remote configuration. A bright OLED display makes it easy to always know your status, and there are 1/4"-20 and M3 mounting threads that let you mount this receiver on a wide array of cameras, cages, and rigs.

Q & A

  • Does this rental include V-Mount batteries?
    • This rental includes a V-Mount battery plate but doesn’t include batteries or a charger. You can rent V-Mount batteries separately here.

  • Is this receiver compatible with previous Teradek Bolt Pro or XT models?
    • This receiver is only compatible with Teradek Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum.

  • Do you offer this receiver with a Gold Mount battery plate?
    • Yes! We also offer this receiver with a Gold Mount battery plate.

  • Does this rental include any mounting hardware?
    • Yes, this rental includes a 5/8" receiver with 1/4"-20 threading.

  • Does this rental include a Bolt 4K LT HDMI Transmitter?
  • Brand

    Teradek

    Environmental

    IP Rating

    • None
    Operating Temperature
    • 32 to 104°F



    Format Support

    Video Format (HDMI)

    • DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
    • UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 576p: 50
    • 480p: 60/59.94
    • 576i: 60
    • 480i: 59.94
    Audio Format
    • 2-Channel 24-Bit 48 kHz
    Timecode Support
    • Yes



    Inputs/Outputs

    Antenna Ports

    • 5x RP-SMA Female
    Video
    • 1x HDMI Type A (HDMI 1.4b) Output
    Embedded Audio
    • HDMI: 2-Channel
    Audio
    • None
    Power I/O
    • 1x LEMO 2-Pin (28 VDC)
    • Input 1x Proprietary (28 VDC) Input
    Other I/O
    • 1x Micro-USB Input
    Encryption
    • 256-Bit AES



    Item Type

    Monitoring

    Mfr. Model Number

    10-2207-V

    Monitoring Type

    Wireless

    Physical

    Mounting

    • 1x 1/4"-20 Female
    Dimensions (L x W x H)
    • 4.8 × 3.7 × 1.1″
    Weight
    • 0.6 lb.



    Power

    DC Input Power

    • 6 to 28 VDC
    Battery Type
    • 1x V-Mount (Interchangeable Mount)
    Power Consumption
    • 11 W



    System

    Bolt 4K

    Wireless

    Wireless Range

    • 750’ / 228.6m (Line-of-Sight)
    Channel Bandwidth
    • 40 MHz, 20 MHz
    Non-DFS Frequency Range
    • US: 5.19 to 5.23 GHz
    • US: 5.75 to 5.79 GHz
    DFS Frequency Range
    • US: 5.27 to 5.67 GHz
    Latency
    • < 0.01 ms
    RF Power
    • 19 dBm
    Wi-Fi
    • Yes

    Teradek Bolt 4K LT HDMI Receiver (V-Mount)

    AC Adapter - Teradek Bolt Pro 2-pin LEMO

    Cable - USB 2.0 A Male to Type C

    Monitor Accessory - Teradek Antenna 2dBi WiFi 2.4/5.8 GHz

    Monitor Accessory - Teradek Antenna 2dBi WiFi 2.4/5.8 GHz

    Monitor Accessory - Teradek Antenna 2dBi WiFi 2.4/5.8 GHz

    Monitor Accessory - Teradek Antenna 2dBi WiFi 2.4/5.8 GHz

    Monitor Accessory - Teradek Antenna 2dBi WiFi 2.4/5.8 GHz

    Support Accessory - 5/8 Receiver w/ 1/4-20 Threading

    Teradek Bolt 4K V-Mount Plate (Female)

    Teradek Bolt 4K V-Mount Plate (Male)
